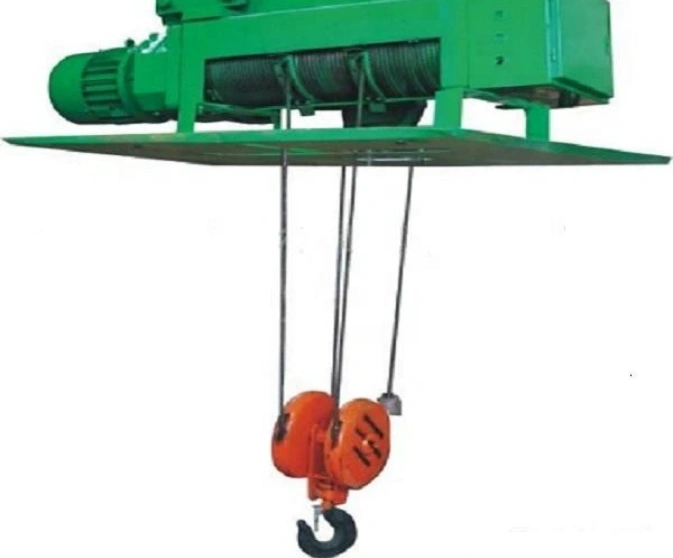

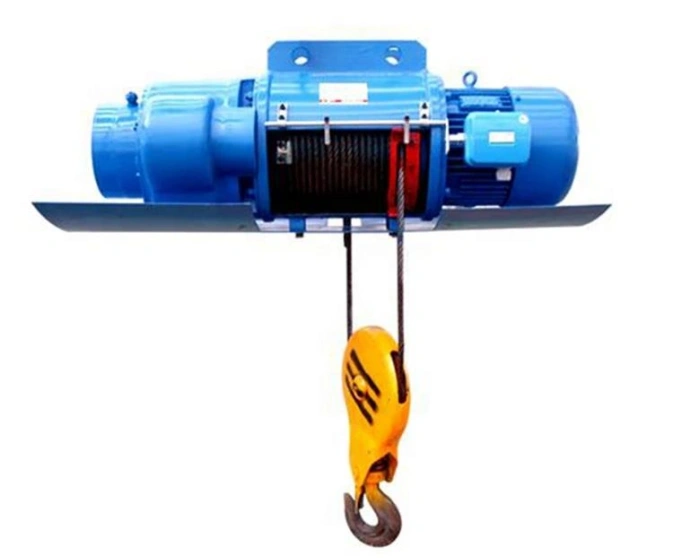

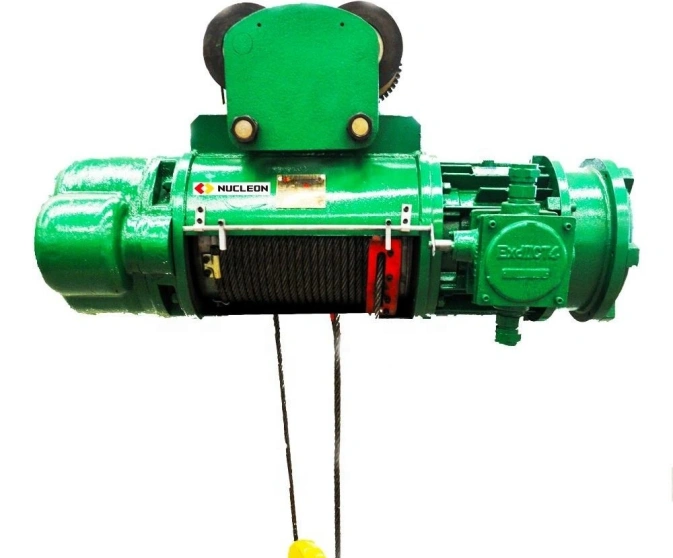

Explosion-proof wire rope electric hoist
Authentication mark:
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail,
Capacity:
0.25 ton – 32 tons customizable
Lifting Height:
3 m – 48 m (Customizable)
Voltage/Hertz:
3-phase AC 380V / 50Hz (Customizable)
Working Class:
M3 – M5
Get A Free Quote
WhatsApp
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
An Explosion-Proof Wire Rope Electric Hoist (such as Model BCD / HB) is a specialized motorized lifting unit designed specifically for hazardous environments containing flammable gases, vapors, or combustible dusts. Engineered with flameproof housings, explosion-proof motors, and non-sparking mechanical components, it runs along crane monorails or bridge girders to deliver safe material handling in volatile atmospheres.
APPLICATION SCENARIO
[1] Petrochemical plants – Lifting pumps, valves, reactors, and pipes in Zone 1 or Zone 2 hazardous areas.
[2] Oil and gas refineries – Handling equipment near volatile hydrocarbons and explosive atmospheres.
[3] Chemical production lines – Moving flammable powders, liquids, or gas cylinders in Ex-zones.
[4] Pharmaceutical manufacturing – Lifting solvent containers and drying equipment in explosion-risk cleanrooms.
[5] Grain silos and flour mills – Operating in dust-explosion hazardous environments (Zone 21/22).
[2] Oil and gas refineries – Handling equipment near volatile hydrocarbons and explosive atmospheres.
[3] Chemical production lines – Moving flammable powders, liquids, or gas cylinders in Ex-zones.
[4] Pharmaceutical manufacturing – Lifting solvent containers and drying equipment in explosion-risk cleanrooms.
[5] Grain silos and flour mills – Operating in dust-explosion hazardous environments (Zone 21/22).
ADVANTAGES
[1] Certified explosion protection – ATEX, IECEx, or GB Ex certified for gas (Zone 1/2) and dust (Zone 21/22).
[2] Spark-proof mechanical components – Bronze or stainless steel contacts on limit switches and anti-static coating.
[3] Reliable and safe – Flameproof enclosure prevents internal ignition from escaping.
[4] Compact design – Available in low-headroom versions for space-limited Ex areas.
[5] Low maintenance – All hazardous-area rated components with long service intervals.
[2] Spark-proof mechanical components – Bronze or stainless steel contacts on limit switches and anti-static coating.
[3] Reliable and safe – Flameproof enclosure prevents internal ignition from escaping.
[4] Compact design – Available in low-headroom versions for space-limited Ex areas.
[5] Low maintenance – All hazardous-area rated components with long service intervals.

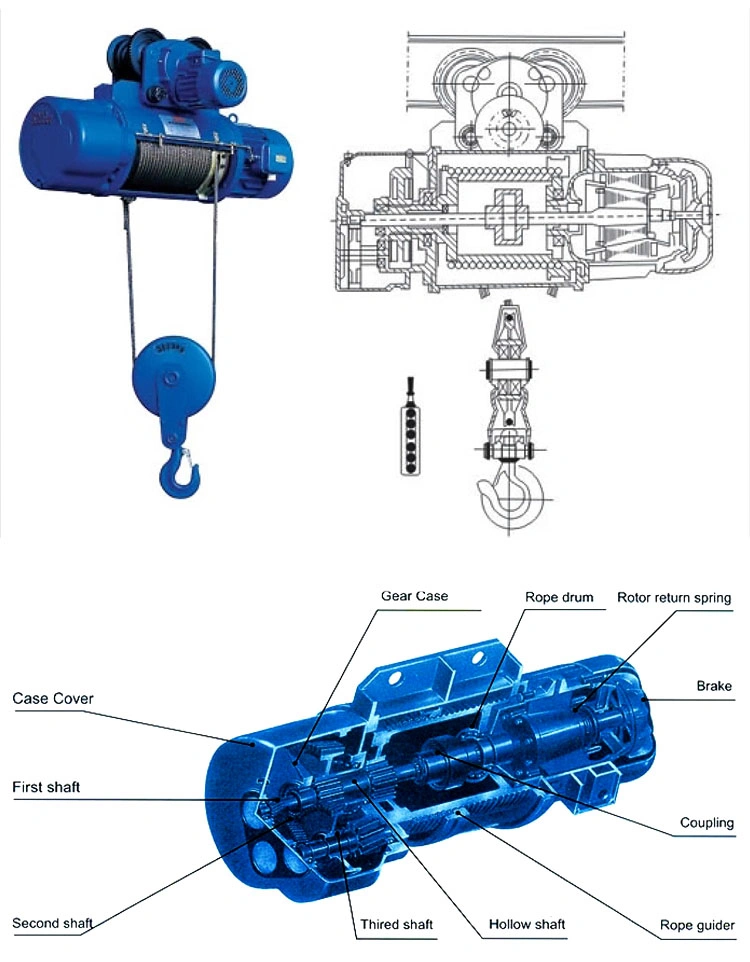

STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Rated Capacity | 0.25 ton – 32 tons |
| Standard Lifting Height | 3 m – 48 m (Customizable) |
| Lifting Speed | 3.5 m/min – 8 m/min |
| Traveling Speed | 14 m/min – 30 m/min |
| Working Class | M3 – M5 |
| Explosion-proof Grade | Ex d ⅡB T4 / Ex d ⅡC T4 (Gas) DIP A21 TA,T4 (Dust) |
| Brake System | Pendant control / Remote radio control |
| Certification | ATEX / IECEx / CE / Explosion-proof certificate |
