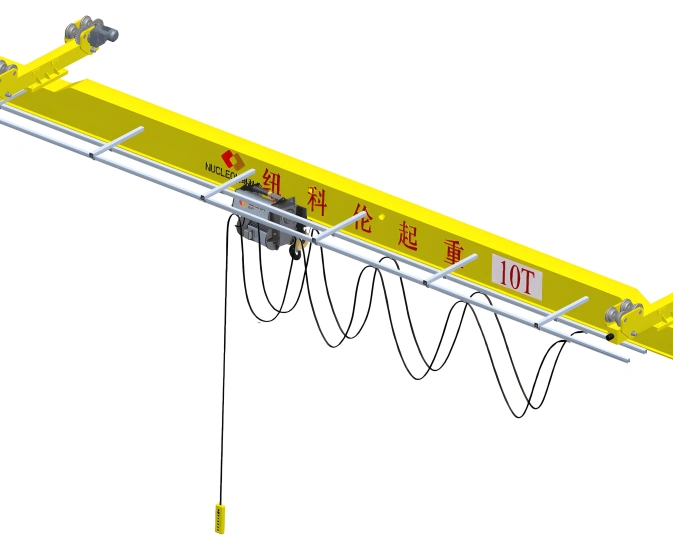

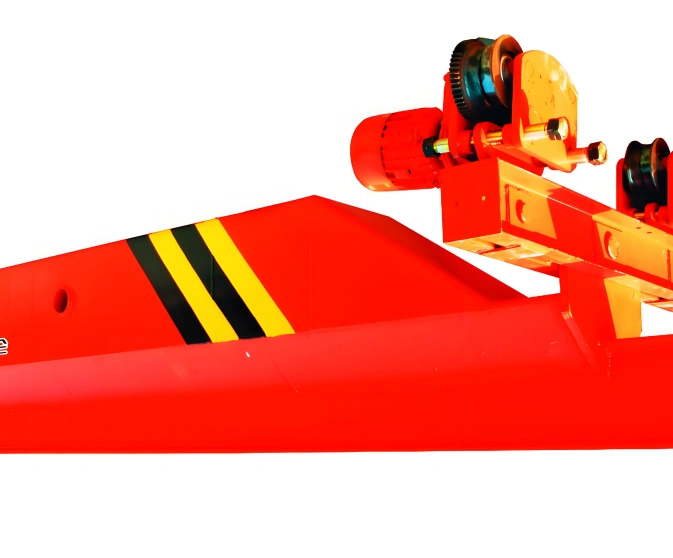

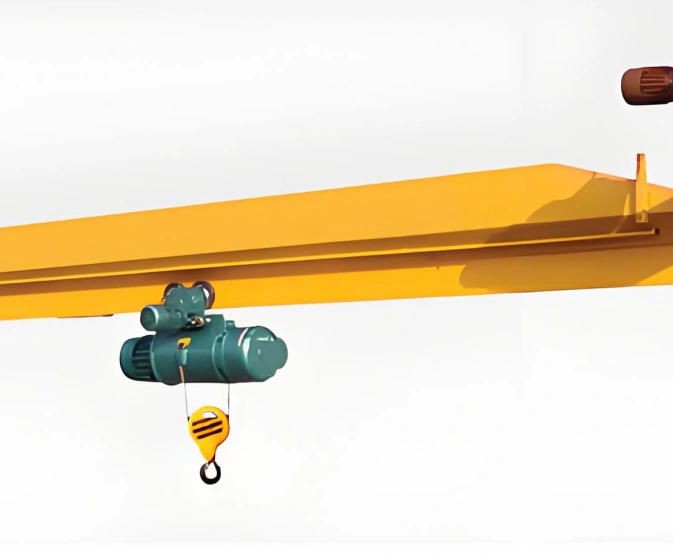

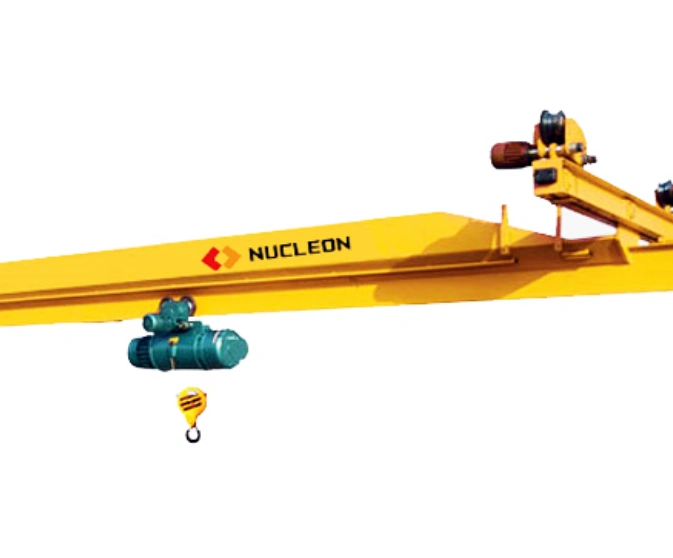

LX Electric Single-girder suspension Crane
Authentication mark:
This crane is mainly used in light manufacturing workshops, assembly lines, warehouses, machine shops, and maintenance areas.
Capacity:
0.5 t – 10 t customizable
Lifting Height:
3 m – 12 m (customizable based on building clearance)
Span:
3 m – 16 m customizable
Voltage/Hertz:
3 Phase 380V 50hz
Working Class:
A3, A4, A5 (Light to medium duty)
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
What is this?
The LX electric single-girder suspension crane is a compact overhead lifting solution that runs on suspended I-beams or track systems mounted directly to the building roof structure. Unlike traditional cranes that require floor rails or runway beams supported by columns, this crane hangs from the ceiling, keeping the floor completely clear. An electric hoist travels along the single girder, achieving precise lifting and handling of light to medium loads such as tools, parts, raw materials, and assembled components. If your workshop has limited floor space or you need an overhead crane without floor-mounted columns, this product is designed for you.
Why choose a suspension crane over a traditional floor-supported overhead crane?
Compared to traditional floor-supported overhead cranes, the LX suspension solution offers four core advantages:
First, saves valuable floor space – suspended design keeps the crane overhead, freeing up floor space for production equipment, storage, or safe walkways.
Second, no floor rails or columns – eliminates trip hazards and obstructions, allowing unobstructed movement of forklifts and personnel throughout the workshop.
Third, flexible installation – can be installed in existing buildings with low headroom, using standard I-beams or specialized track systems.
Fourth, lower installation cost – no concrete foundation or column supports required, reducing civil work costs by 40%-60%.
Get overhead lifting without taking up valuable floor space.
What can we do for you?
We understand that every customer has different building structures, different capacity requirements, and different working areas. Therefore, we offer flexible customization options: lifting capacity from 0.5 ton to 10 tons; span from 3 meters to 16 meters; suspension types of fixed I-beam or modular KBK track system; control options of pendant, remote radio, or cabin; single speed, dual speed, or VVVF speed control optional. Whether your workshop is for light assembly, warehousing, or maintenance, we can match the most suitable span and lifting height.
Unsure? Don't know?
Not sure whether a fixed I-beam or modular track system suits your building? Don't know what span fits your workshop? No problem. Just tell us: your building ceiling type, your workshop width, and the maximum weight to be lifted. Our engineers will provide you with an accurate quote and CAD layout within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your workshop structure and handling needs, and we will calculate for you.
The LX electric single-girder suspension crane is a compact overhead lifting solution that runs on suspended I-beams or track systems mounted directly to the building roof structure. Unlike traditional cranes that require floor rails or runway beams supported by columns, this crane hangs from the ceiling, keeping the floor completely clear. An electric hoist travels along the single girder, achieving precise lifting and handling of light to medium loads such as tools, parts, raw materials, and assembled components. If your workshop has limited floor space or you need an overhead crane without floor-mounted columns, this product is designed for you.
Why choose a suspension crane over a traditional floor-supported overhead crane?
Compared to traditional floor-supported overhead cranes, the LX suspension solution offers four core advantages:
First, saves valuable floor space – suspended design keeps the crane overhead, freeing up floor space for production equipment, storage, or safe walkways.
Second, no floor rails or columns – eliminates trip hazards and obstructions, allowing unobstructed movement of forklifts and personnel throughout the workshop.
Third, flexible installation – can be installed in existing buildings with low headroom, using standard I-beams or specialized track systems.
Fourth, lower installation cost – no concrete foundation or column supports required, reducing civil work costs by 40%-60%.
Get overhead lifting without taking up valuable floor space.
What can we do for you?
We understand that every customer has different building structures, different capacity requirements, and different working areas. Therefore, we offer flexible customization options: lifting capacity from 0.5 ton to 10 tons; span from 3 meters to 16 meters; suspension types of fixed I-beam or modular KBK track system; control options of pendant, remote radio, or cabin; single speed, dual speed, or VVVF speed control optional. Whether your workshop is for light assembly, warehousing, or maintenance, we can match the most suitable span and lifting height.
Unsure? Don't know?
Not sure whether a fixed I-beam or modular track system suits your building? Don't know what span fits your workshop? No problem. Just tell us: your building ceiling type, your workshop width, and the maximum weight to be lifted. Our engineers will provide you with an accurate quote and CAD layout within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your workshop structure and handling needs, and we will calculate for you.
APPLICATION SCENARIO
[1] Light Manufacturing Workshops – Handling raw materials, semi-finished products, tools, and assembled components in plastics, electronics, and general manufacturing with clear floor space.
[2] Assembly Lines – Moving components, motors, pumps, and assemblies along the production line, with the suspended design keeping aisles clear for workers and carts.
[3] Warehouses – Loading/unloading goods from trucks, moving pallets and cartons to storage racks, and order picking operations without floor obstructions.
[4] Machine Shops – Lifting workpieces, engine blocks, gearboxes, and machine parts between lathes, mills, and other equipment, keeping floor space for operator movement.
[5] Maintenance Workshops – Servicing equipment parts, motors, pumps, and heavy tools in plant maintenance areas with limited floor space.
[2] Assembly Lines – Moving components, motors, pumps, and assemblies along the production line, with the suspended design keeping aisles clear for workers and carts.
[3] Warehouses – Loading/unloading goods from trucks, moving pallets and cartons to storage racks, and order picking operations without floor obstructions.
[4] Machine Shops – Lifting workpieces, engine blocks, gearboxes, and machine parts between lathes, mills, and other equipment, keeping floor space for operator movement.
[5] Maintenance Workshops – Servicing equipment parts, motors, pumps, and heavy tools in plant maintenance areas with limited floor space.
ADVANTAGES
[1] Space-Saving Suspended Design – Mounts to building ceiling, freeing up valuable floor space.
[2] No Floor Obstructions – Eliminates floor rails and columns for unobstructed movement of forklifts and personnel.
[3] Low Headroom Capability – Compact design maximizes lifting height in low-clearance buildings.
[4] Flexible Track Options – Fixed I-beam or modular KBK track for straight or curved layouts.
[5] Low Installation Cost – No concrete foundation or floor rails, reducing civil work by 40%-60%.
[6] Easy Expansion – Modular track systems allow simple addition of new workstations or track extensions.
[2] No Floor Obstructions – Eliminates floor rails and columns for unobstructed movement of forklifts and personnel.
[3] Low Headroom Capability – Compact design maximizes lifting height in low-clearance buildings.
[4] Flexible Track Options – Fixed I-beam or modular KBK track for straight or curved layouts.
[5] Low Installation Cost – No concrete foundation or floor rails, reducing civil work by 40%-60%.
[6] Easy Expansion – Modular track systems allow simple addition of new workstations or track extensions.
STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Working Class | A3, A4, A5 |
| Capacity | 0.5 t – 10 t |
| Span | 3 m – 16 m |
| Lifting Height | 3 m – 12 m |
| Lifting Speed | 4 – 12 m/min |
| Trolley Travelling Speed | 20 – 35 m/min |
| Crane Travelling Speed | 20 – 40 m/min |
| Control Method | Pendant control / Remote radio control / Cabin control |
| Power Supply | 380V / 50Hz / 3-phase |
| Temperature | -10°C to +45°C |
| Suspension Type | Fixed I-beam / Modular KBK track system |
| Hoist Type | Electric wire rope hoist / Electric chain hoist |
| Girder Type | Single girder – I-beam or box-section with electric hoist |
