MG European Standard Gantry Crane

Authentication mark:

This crane is mainly used in steel stockyards, port terminals, precast concrete factories, and heavy equipment assembly yards.

Capacity:

5 t – 100 t

Lifting Height:

6 m – 25 m (customizable based on site clearance)

Span:

18 m – 45 m customizable

Voltage/Hertz:

3 Phase 380V 50hz

Working Class:

A5, A6, A7 (Medium to heavy duty)

Get A Free Quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

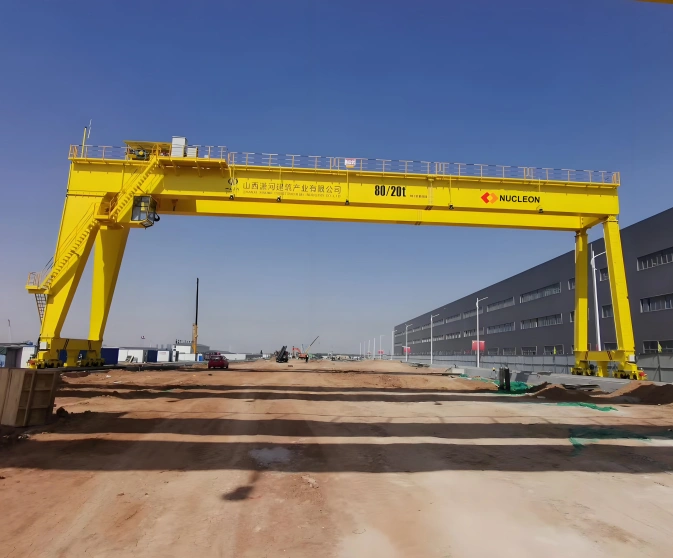

What is this? The MG European standard gantry crane is a double-beam gantry crane designed and manufactured according to FEM/ISO European standards. It features a box-section main girder structure with an electric wire rope trolley, achieving precise lifting and handling of heavy materials, steel coils, containers, prefabricated components, and large equipment. If you need a reliable, high-performance gantry crane that meets international standards for outdoor stockyard or indoor heavy lifting applications, this product is designed for you. Why choose an MG European standard gantry crane over a traditional Chinese standard gantry crane? Compared to traditional Chinese standard gantry cranes, the MG European standard solution offers four core advantages: First, lighter self-weight – optimized FEM design reduces deadweight by 15%-20% compared to traditional designs, lowering rail foundation costs. Second, higher safety factor – European standards require stricter safety margins, with fatigue life calculation and seismic design included as standard. Third, smoother operation – precision-engineered components with better tolerances provide smoother travel and more accurate positioning. Fourth, global compliance – FEM/ISO certification simplifies export and use in international projects, meeting European and global market requirements. Get international standard quality with optimized European design. What can we do for you? We understand that every customer has different capacity requirements, different spans, and different working environments. Therefore, we offer flexible customization options: lifting capacity from 5 tons to 100 tons; span from 18 meters to 45 meters; leg types of A-frame, L-frame, or U-frame; single or double cantilever; control options of cabin, remote radio, or pendant; VVVF speed control for smooth start/stop. Whether your working environment is an outdoor stockyard or an indoor workshop, we can match the most suitable span and lifting height. Unsure? Don't know? Not sure whether to choose A-frame or L-frame legs? Don't know what span covers your stockyard? No problem. Just tell us: your maximum lifting capacity, your stockyard span or width, whether you need cantilevers, and whether it's for outdoor or indoor use. Our engineers will provide you with an accurate quote and CAD drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution. 💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your material types and site dimensions, and we will calculate for you.

APPLICATION SCENARIO

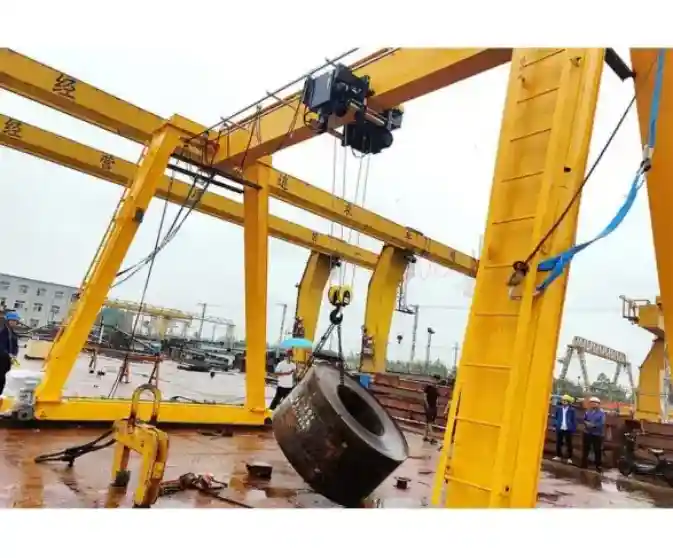

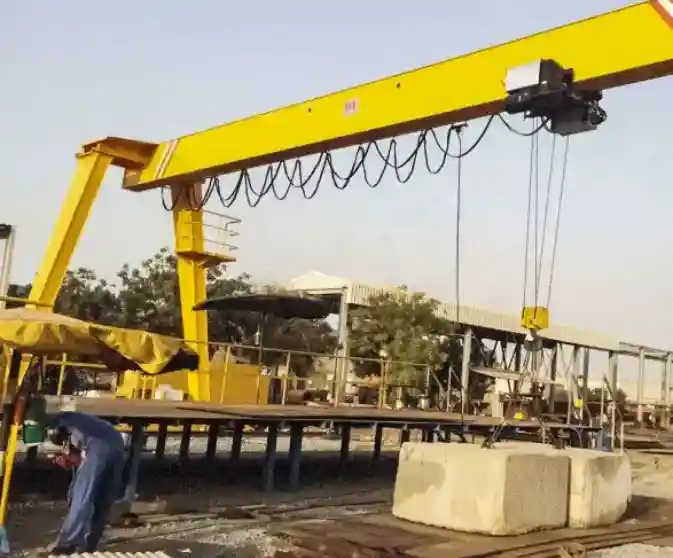

[1] Steel Stockyards – Handling steel coils, plates, pipes, H-beams, and structural sections with high precision and heavy load capacity. [2] Port Terminals – Lifting containers, heavy machinery, large equipment, and bulk cargo on secondary wharves and port auxiliary areas. [3] Precast Concrete Factories – Moving concrete beams, wall panels, pipes, and heavy molds from curing beds to storage yards. [4] Heavy Equipment Assembly Yards – Relocating large components such as transformer bodies, wind turbine sections, and mining equipment parts. [5] Railway Freight Stations – Loading/unloading heavy goods like rail tracks, wheelsets, locomotive components, and transformers.

ADVANTAGES

[1] European Standard Design – FEM/ISO compliant with optimized structure for lighter weight and higher safety. [2] High Load Capacity – Double girder design supports loads from 5t up to 100t, meeting heavy industrial requirements. [3] Long Span Capability – Rigid structure easily achieves spans over 40m, covering wide stockyards. [4] High Duty Cycle – Designed for continuous operation with duty class up to A7, suitable for intensive use. [5] Global Compliance – International standard certification simplifies export and use in overseas projects.

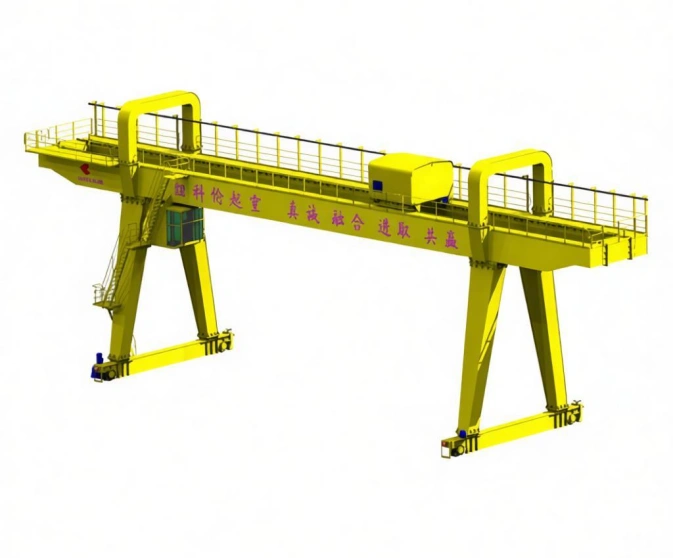

STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter	Specification
Working Class	A5, A6, A7
Capacity	5 t – 100 t
Span	18 m – 45 m
Lifting Height	6 m – 25 m
Lifting Speed	Main hook: 4 – 12 m/min Auxiliary hook: 6 – 15 m/min
Trolley Travelling Speed	35 – 45 m/min
Crane Travelling Speed	20 – 50 m/min (VVVF optional)
Control Method	Cabin control / Remote radio control / Pendant control
Power Supply	380V / 50Hz / 3-phase
Protection Grade	Motor: IP54 – IP55, Insulation class F or H
Design Standard	FEM / ISO / European standard
Girder Type	Double beam – Box-section main girders with full-penetration welding

Six core advantages

Full Scenario Coverage

Nucleon covers over 20 product categories including ladle cranes, multi-purpose cranes, intelligent cranes, overhead/portal cranes, RTG, RMG, deck cranes, portal cranes, girder launchers, yacht cranes, KBK, and jib cranes. From steel smelting to port handling, bridge construction to ship equipment, Nucleon provides one-stop lifting solutions. Whether standard models or extreme-condition customizations, Nucleon possesses mature technical expertise and proven track records, saving customers from dealing with multiple suppliers.

Military-Grade Quality Standards

We use high-strength steel from Baosteel/Ansteel for key structural components, with 100% NDT inspection and one-clamp CNC gantry machining. Every machine undergoes 120% dynamic load and 125% static load tests before delivery, with continuous operation verification under extreme conditions. Even in 24/7 continuous casting plants, -40°C arctic ports, or high-temperature humid ship cabins, our cranes maintain millimeter-level precision and zero-drift stability—quality that stands the test of time.

Extended Longevity & Low Maintenance Cost

Our main girders are FEA-optimized and double-submerged arc welded, with a design life of ≥30 years. Key bearings are lifetime lubrication-free, and hardened travel wheels extend wear cycles by 3 times. Core components feature modular quick-change interfaces with spare parts commonality exceeding 80%. Annual maintenance costs are reduced by 40%~60%, saving millions in lifecycle operating expenses — truly "invest once, benefit long-term."

Energy Efficiency Leader

Our entire series comes standard with IE5 permanent magnet synchronous motors + energy feedback VFD drives, achieving 25%~35% comprehensive energy savings. Single-motor operation under light loads and adaptive speed control reduce electrical waste by over 30%. High-strength steel lightweight design cuts deadweight by 15%~20%, lowering workshop load requirements. A single ladle crane station saves over RMB 150,000 in electricity costs annually, helping customers achieve green and low-carbon production.

Ultimate Safety Redundancy Design

Our hoisting mechanism comes standard with dual brakes + mechanical overspeed switch + triple limit switches, featuring multiple redundant interlocks to prevent load dropping and over-traveling. Large products use box girder torsion-resistant structures, remaining stable even in level 8 gusty winds. Optional intelligent safety monitoring systems detect anomalies in load, skew, wind speed, etc., with automatic alarms and shutdowns. Overall safety redundancy coefficient > 2.0, maintaining zero crane safety incidents for many consecutive years.

Deep Customization & Full Lifecycle Service

We provide complete front-end support from site survey and mechanical simulation to civil review, delivering custom drawings within 2 weeks, with non-standard lead times only 5~7 days longer than standard products. We establish lifelong digital dossiers for customers, warning of end-of-life components 3 months in advance. Our full lifecycle services cover installation training, regular inspections, and remote O&M. With customer repeat purchase rates exceeding 85% for five consecutive years, we are a trustworthy long-term partner.
