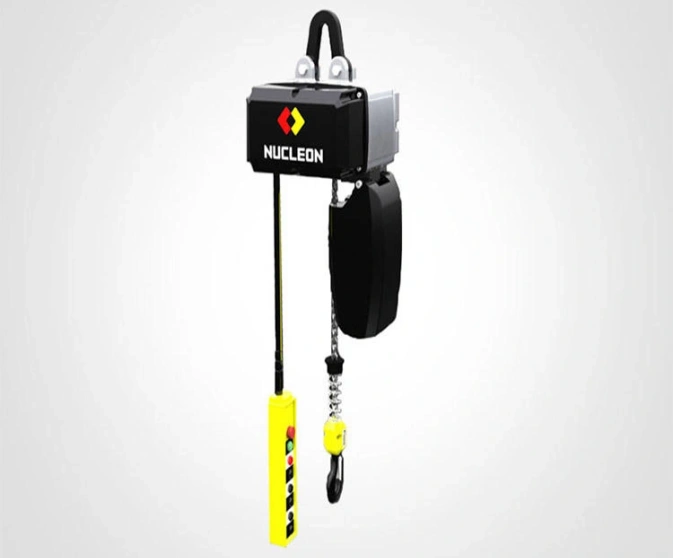

Fixed type chain hoist
Authentication mark:
This hoist is mainly used in small manufacturing workshops, warehouse maintenance bays, and assembly stations.
Capacity:
0.25 ton – 35 tons (Common: 0.25t, 0.5t, 1t, 2t, 3t, 5t, 10t, 15t, 20t, 32t)
Lifting Height:
3 m – 6 m (Customizable up to 50 m)
Voltage/Hertz:
3-phase: 220V – 480V / 50Hz / 60Hz; Single-phase optional
Working Class:
M3 – M5
Get A Free Quote
WhatsApp
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
A Fixed Type Electric Chain Hoist (Stationary Electric Chain Hoist) is a compact, power-driven hoisting unit designed for vertical lifting from a single, stationary point. Mounted via a top suspension hook, lug, or fixed plate attachment to a beam, tripod, or frame, it utilizes a high-strength alloy load chain driven by an electric motor and precision gear box to raise and lower loads without lateral travel.
APPLICATION SCENARIO
[1] Workstations and assembly benches – Lifting components directly above a fixed position.
[2] Loading docks with overhead structure – Hoisting goods from trucks where no trolley travel is needed.
[3] Maintenance pits and service bays – Raising engines or machinery parts in a fixed spot.
[4] Small workshops – Lifting heavy tools or materials at a dedicated station.
[5] Inspection areas – Positioning test samples under a fixed hoist point.
[2] Loading docks with overhead structure – Hoisting goods from trucks where no trolley travel is needed.
[3] Maintenance pits and service bays – Raising engines or machinery parts in a fixed spot.
[4] Small workshops – Lifting heavy tools or materials at a dedicated station.
[5] Inspection areas – Positioning test samples under a fixed hoist point.
ADVANTAGES
[1] Simple and reliable – Few moving parts, easy to install and operate.
[2] Low cost – More economical than traveling hoists.
[3] Compact design – Ideal for space‑limited work cells.
[4] Low maintenance – Chain drive with sealed bearings.
[5] Manual or electric options – Flexibility for different lifting needs.
[2] Low cost – More economical than traveling hoists.
[3] Compact design – Ideal for space‑limited work cells.
[4] Low maintenance – Chain drive with sealed bearings.
[5] Manual or electric options – Flexibility for different lifting needs.
STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Rated Capacity | 0.25 ton – 35 tons (Common: 0.25t, 0.5t, 1t, 2t, 3t, 5t, 10t, 15t, 20t, 32t) |
| Standard Lifting Height | 3 m – 6 m (Customizable up to 50 m) |
| Lifting Speed | 2.8 m/min – 6.8 m/min (Dual speed optional) |
| Working Class | M3 – M5 |
| Load Chain Falls | 1 – 8 (Increases with capacity) |
| Power Supply | 3-phase: 220V – 480V / 50Hz / 60Hz; Single-phase optional |
| Motor Protection Grade | IP54 – IP55 |
| Brake System | Electromagnetic disc brake, instant braking when power off |
| Control Method | Pendant control / Remote radio control |
| Operating Temperature | -20℃ to +40℃ |
