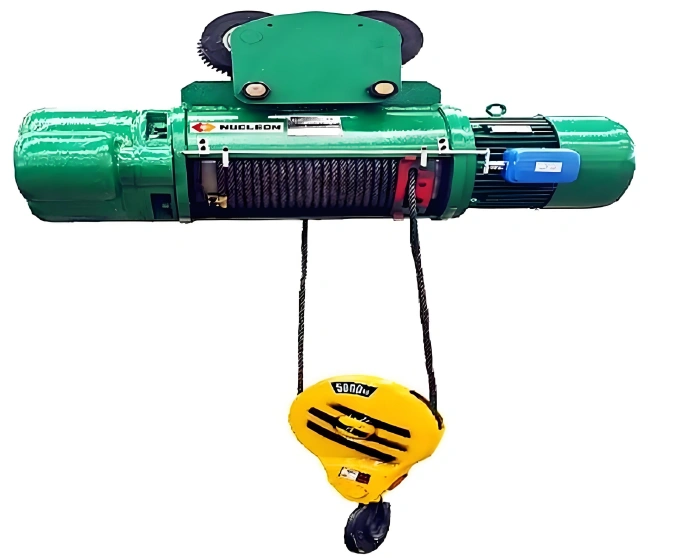

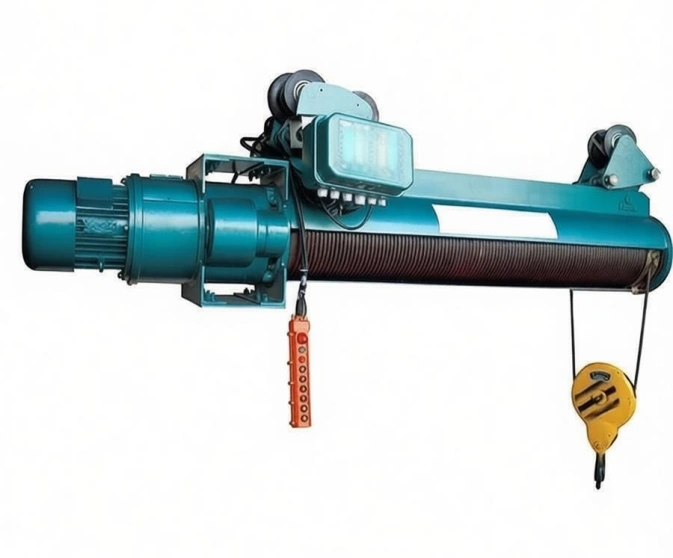

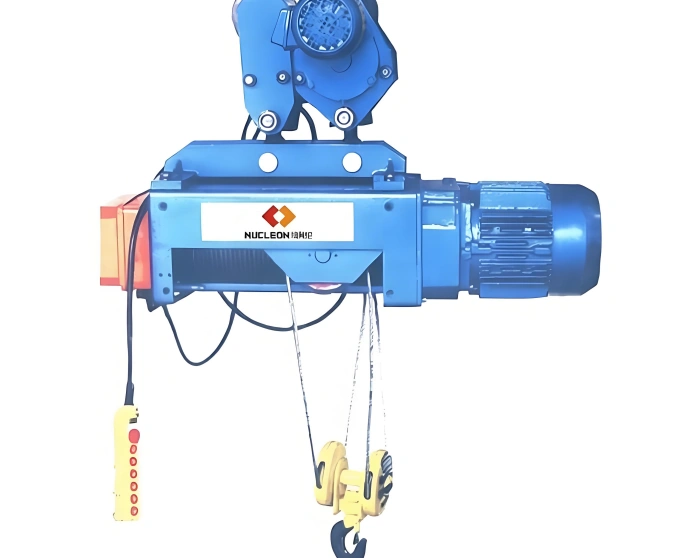

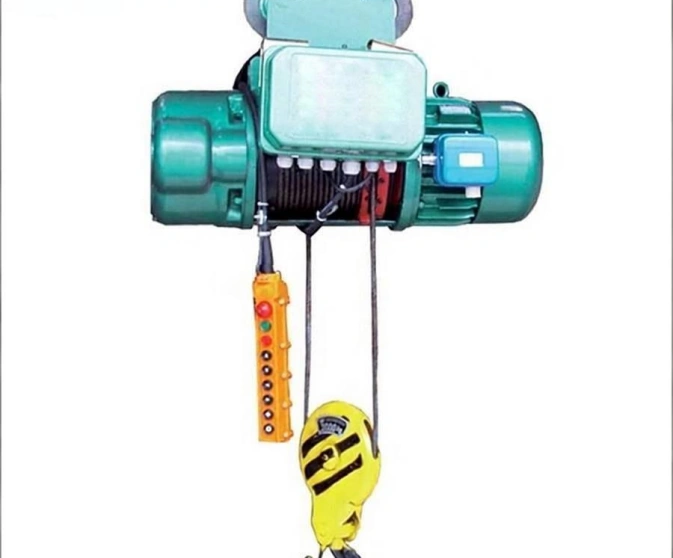

Small steel wire rope electric hoist
Authentication mark:
This hoist is mainly used in small manufacturing shops, repair garages, and light warehouse operations.
Capacity:
0.25 ton – 32 tons customizable
Lifting Height:
6 m – 30 m (Customizable up to 48 m)
Voltage/Hertz:
3-phase 380V / 50Hz (Customizable to 220V/440V/660V)
Working Class:
M3 – M5
Traveling Speed:
20 – 30 m/min
Lifting Speed:
Single speed: 7 – 8 m/min; Dual speed: 0.7/7 – 0.8/8 m/min
Get A Free Quote
WhatsApp
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
A Small Steel Wire Rope Electric Hoist (often referred to as a mini electric hoist or micro wire rope hoist) is a ultra-compact, lightweight lifting device powered by a single-phase ($220\text{V}$) or three-phase electric motor. Designed for light-duty hoisting, it uses a high-tensile steel wire rope and a miniature drum mechanism to provide fast, reliable vertical lifting in space-constrained or light commercial environments.
APPLICATION SCENARIO
[1] Small workshops and garages – Lifting engines, transmissions, and heavy tools.
[2] Warehouses and storage areas – Loading/unloading boxes, machinery parts, and pallets.
[3] Assembly lines in light industry – Moving components between workstations.
[4] Home workshops and DIY – Hoisting wood, metal stock, or small equipment.
[5] Maintenance and repair shops – Raising pumps, compressors, and spare parts
[2] Warehouses and storage areas – Loading/unloading boxes, machinery parts, and pallets.
[3] Assembly lines in light industry – Moving components between workstations.
[4] Home workshops and DIY – Hoisting wood, metal stock, or small equipment.
[5] Maintenance and repair shops – Raising pumps, compressors, and spare parts
ADVANTAGES
[1] Compact and portable – Lightweight design, easy to install on existing beams.
[2] Low cost – Affordable for small businesses and home use.
[3] Smooth wire rope lift – No chain noise; precise positioning.
[4] Durable construction – Steel housing and reliable motor for long life.
[5] Simple operation – Pendant or wireless remote control available.
[2] Low cost – Affordable for small businesses and home use.
[3] Smooth wire rope lift – No chain noise; precise positioning.
[4] Durable construction – Steel housing and reliable motor for long life.
[5] Simple operation – Pendant or wireless remote control available.
STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Rated Capacity | 0.25 ton – 32 tons |
| Standard Lifting Height | 6 m – 30 m (Customizable up to 48 m) |
| Lifting Speed | Single speed: 7 – 8 m/min; Dual speed: 0.7/7 – 0.8/8 m/min |
| Traveling Speed | 20 – 30 m/min |
| Working Class | M3 – M5 |
| Wire Rope Diameter | 4.8mm – 17.5mm (Increases with capacity) |
| Wire Rope Construction | 6×19 or 6×37+NF |
| Power Supply | 3-phase 380V / 50Hz (Customizable to 220V/440V/660V) |
| Motor Protection Grade | IP44 – IP55 |
| Motor Insulation Class | Class F |
| Brake System | Electromagnetic disc brake, instant braking when power off |
| Control Method | Pendant control / Remote radio control |
| Operating Temperature | -20℃ to +40℃ |
