grab ship loader crane
Introduction
Application Scenario
Advantages

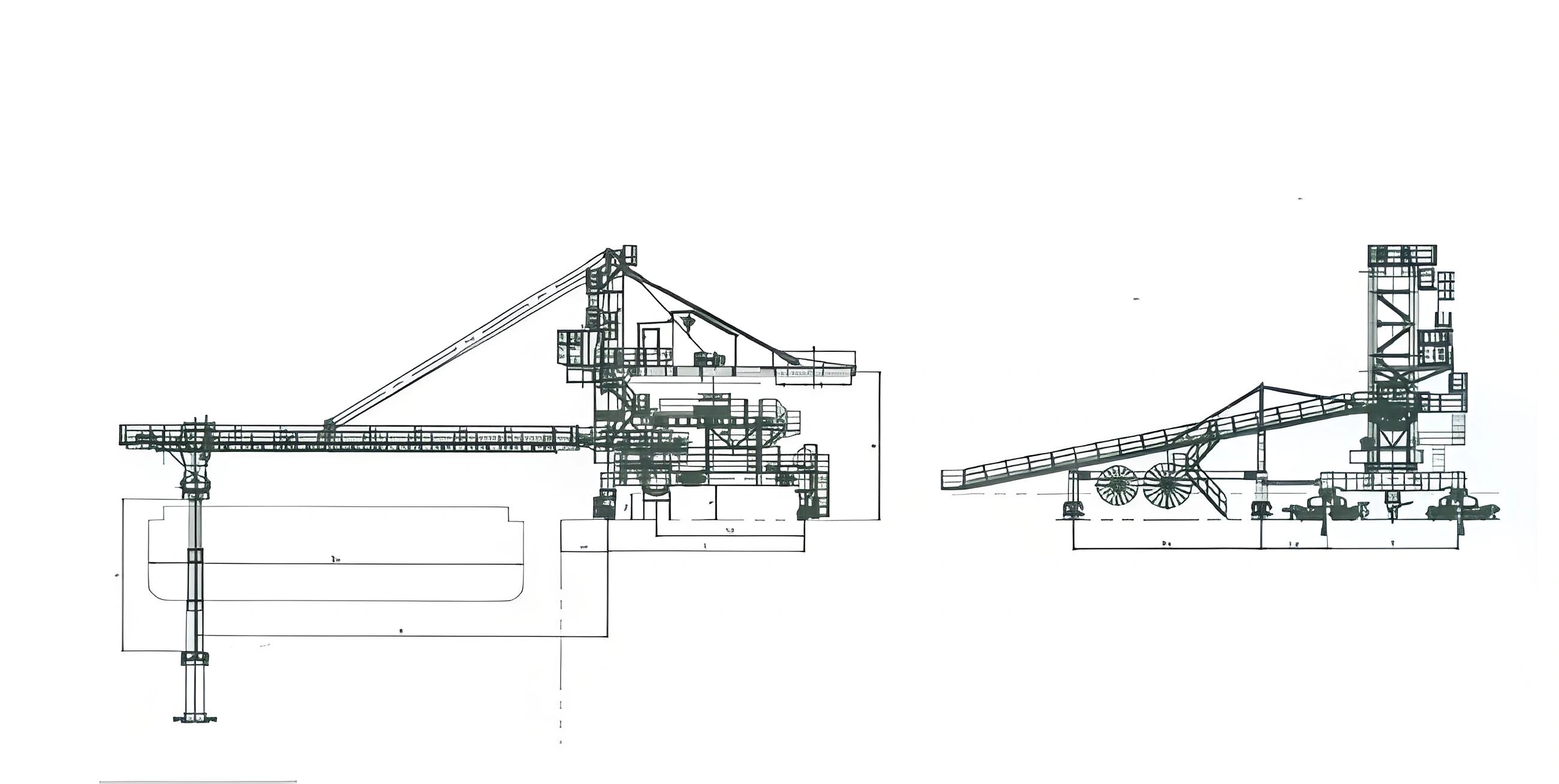

Structural Diagram And Parameter Table

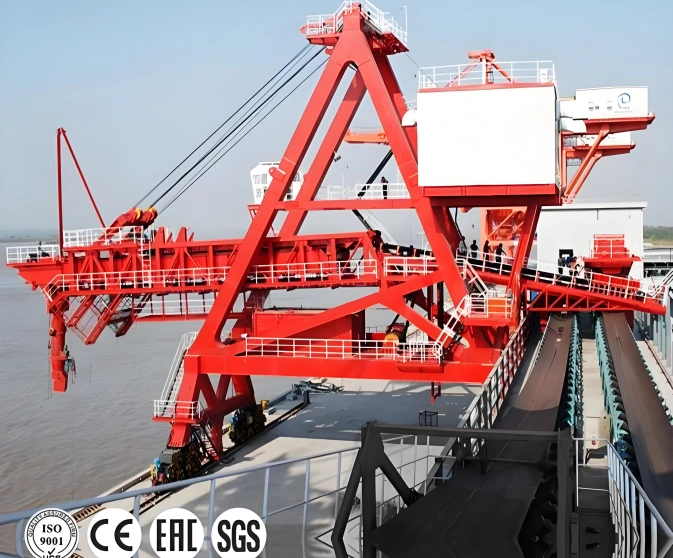

INTRODUCTION
A Grab Ship Loader Crane is a specialized bulk-material loading unit engineered to transfer dry bulk commodities—such as coal, iron ore, clinker, fertilizers, and grain—from quay-side conveyors or hoppers directly into the holds of cargo vessels. Utilizing a heavy-duty mechanical or electro-hydraulic grab bucket suspended from a luffing or trolley-mounted boom, it delivers continuous, high-capacity loading for bulk carrier ships ranging from Barges up to Capesize vessels.

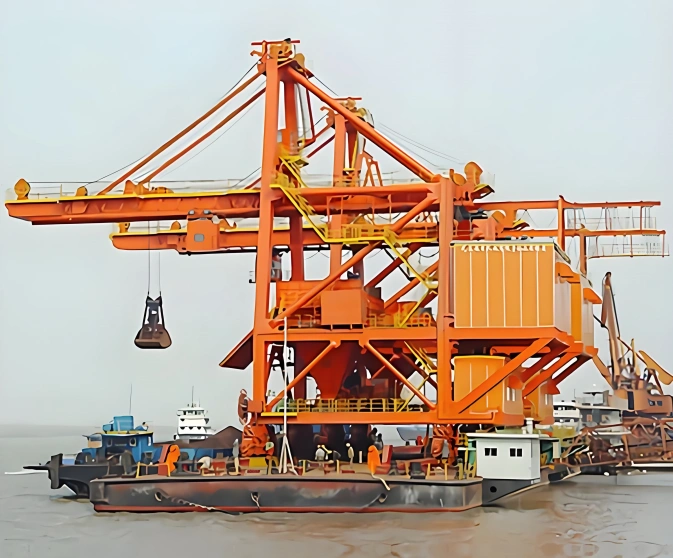

APPLICATION SCENARIO
Dry Bulk Cargo Ports: Loading large bulk vessels (Panamax/Capesize) with iron ore, coal, bauxite, and mineral concentrates.
Grain & Agricultural Terminals: Transporting wheat, corn, soybeans, and fertilizer granules from silos to ship holds.
Power Plants & Mining Wharves: Direct export/transfer of coal or crushed s

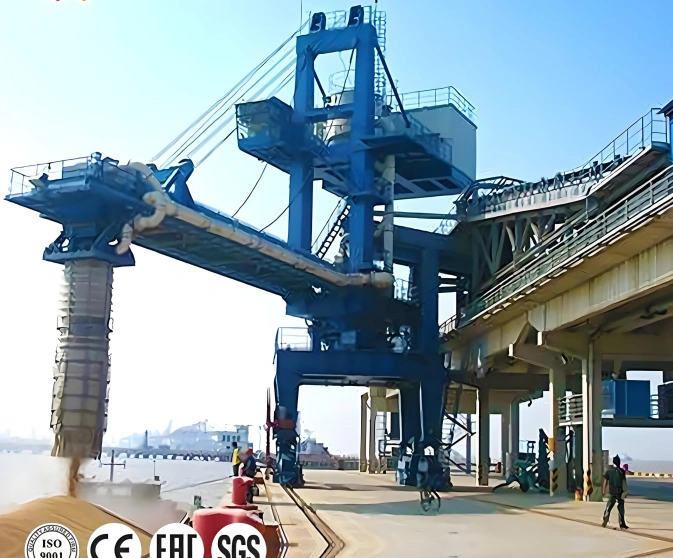

ADVANTAGES
High Loading Rates: Capable of handling massive volumes per hour (typically 500 to 5,000+ tons/hr), drastically cutting vessel berth time and demurrage costs.
Heavy-Duty & Continuous Operation: Built with robust steel structures and heavy-duty winch drives designed for harsh marine environments and non-stop 24/7 terminal operations.
-
Environmental Control: Integrated with dust suppression, telescopic chutes, and sealed grab designs to minimize dust pollution and material spillage during loading.

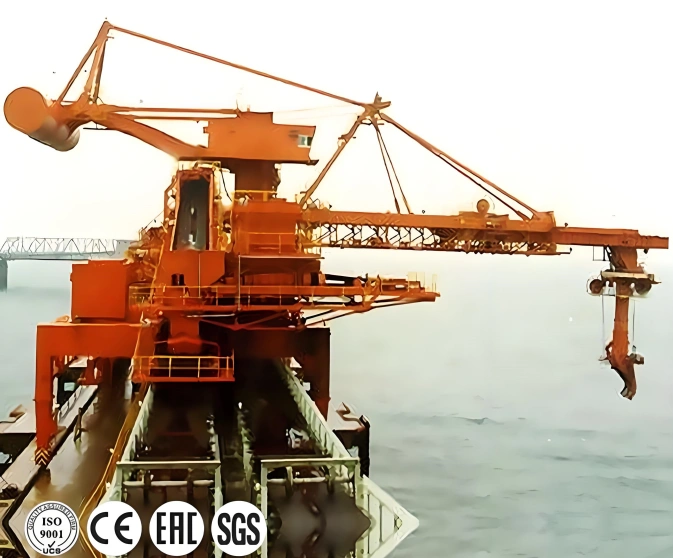

STRUCTURAL DIAGRAM AND PARAMETER TABLE

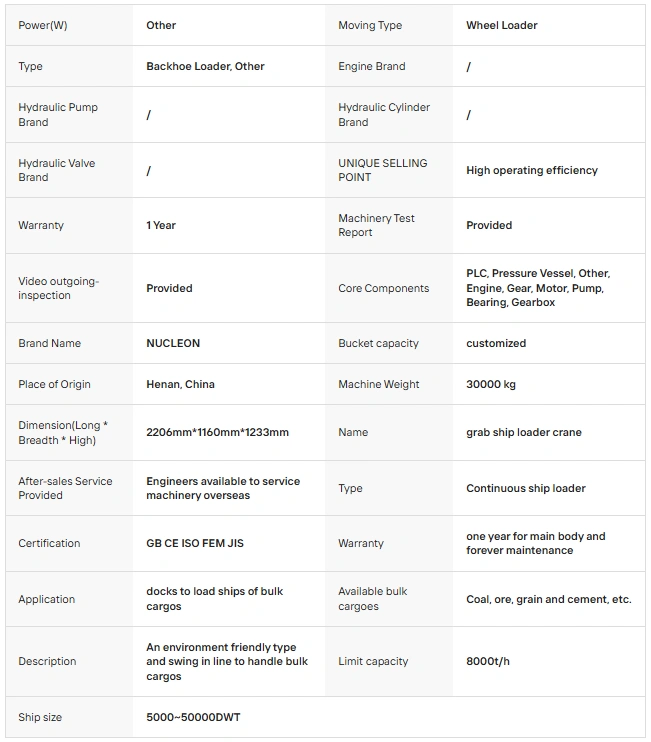

| Parameter | Specification |
|---|---|
| Working Class | A7, A8 (customizable) |
| Rated Capacity | 400 t/h – 3,500 t/h (customizable based on material type) |
| Lifting Capacity | 10 t – 84 t (customizable) |
| 10 t – 84 t | 10.5 m – 30 m (distance between quay rails) |
| Waterside Outreach | 26 m – 53 m (from quay rail to ship centerline) |
| Back Reach | 6 m – 12 m (customizable) |
| Lifting Height | 15 m – 25 m (customizable) |
| Lifting Speed | 60 – 280 m/min (customizable) |
| Trolley Travelling Speed | 100 – 260 m/min (customizable) |
| Crane Travelling Speed | 20 – 40 m/min (along quay rail) |
| Luffing Speed | 5 – 10 m/min (customizable) |
| Control Method | Fully automatic / Semi-automatic / Remote radio control / Cabin control |
| Power Supply | 10kV / 50Hz / 3-phase (high voltage cable reel) |
| Protection Grade | Motors: IP55 – IP56 (marine grade), Insulation class F or H |
