Free Standing Column Jib Crane

Free Standing Column Jib Crane
Self-Supporting Jib Crane
Floor-Mounted Jib Crane
BZ Series Jib Crane
Free Standing Column Jib Crane
Self-Supporting Jib Crane
Floor-Mounted Jib Crane

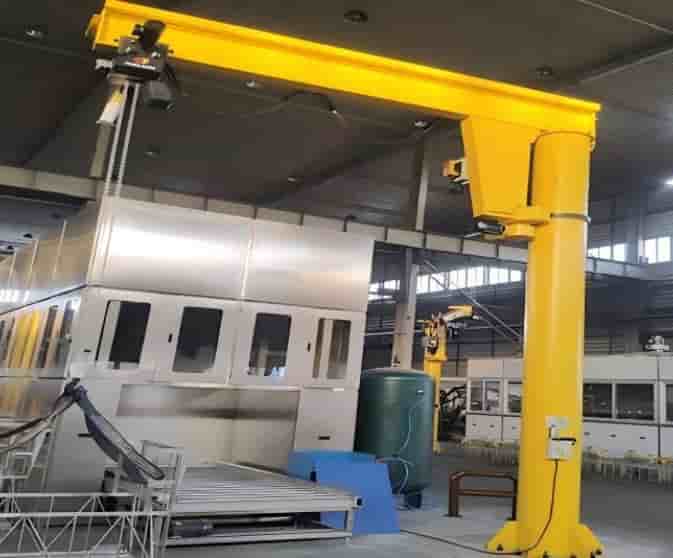

BZ Series Jib Crane
Authentication mark:
ccc
ce
ABS
11
12
Manufacturing & Machinery Assembly Warehousing & Logistics Automotive Manufacturing Foundries & Metal Fabrication Maintenance Workshops
Capacity:
0.25 t – 5 t customizable
Lifting Height:
3 m – 8 m (customizable based on building clearance)
Span:
3 m – 10 m (radius from column center to hook center, customizable)
Voltage/Hertz:
customizable
Working Class:
A3, A4, A5
Get A Free Quote quote
WhatsApp quote

Introduction

Application Scenario

Advantages

Structural Diagram And Parameter Table

INTRODUCTION

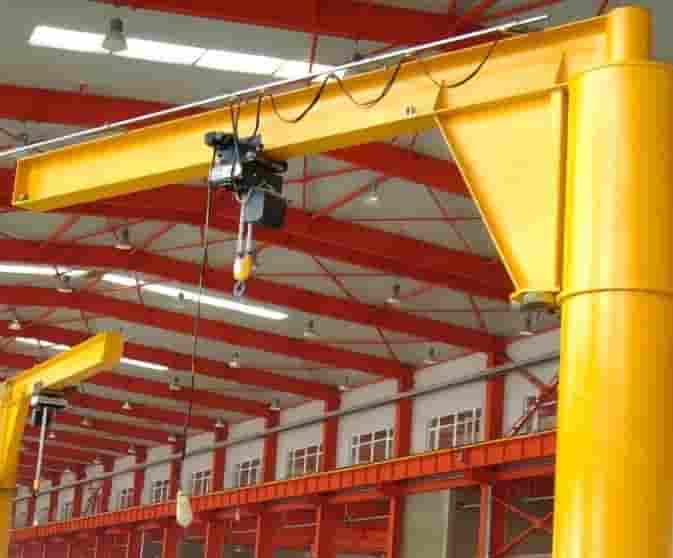

A Free Standing Column Jib Crane (also known as a Pillar-Mounted Jib Crane) is an independent, floor-mounted light-duty lifting system. Consisting of a heavy-duty vertical steel column, a rotating boom arm (jib), a slewing mechanism, and an electric or manual hoist, it operates without any structural support from building walls or facility columns.

APPLICATION SCENARIO

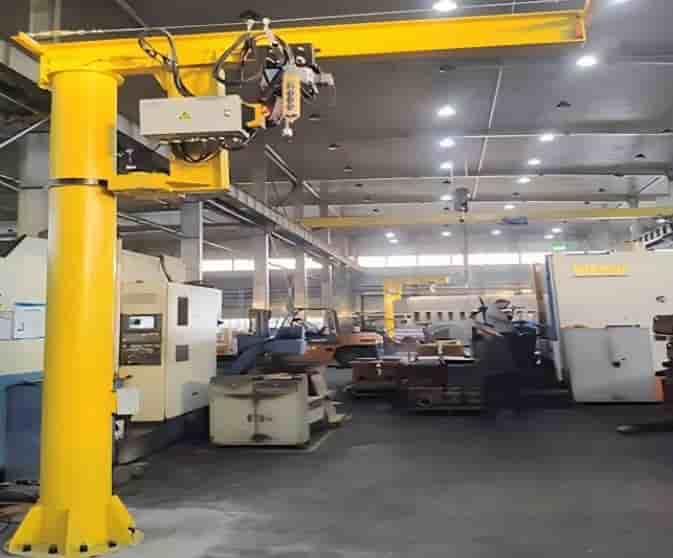

  • Machining & Metal Fabrication: Loading and unloading heavy workpieces onto CNC machines, lathes, and milling stations.

  • Automotive & Equipment Assembly: Precise positioning of engines, gearboxes, and heavy components along production lines.

  • Warehousing & Logistics Hubs: Stacking, sorting, and localized loading/unloading at dispatch and packaging stations.


ADVANTAGES

  • Optimized Workstation Ergonomics: Designed for high-frequency, short-distance lifting, reducing worker fatigue and eliminating waiting time for large overhead travelling cranes.

  • Compact Footprint & High Clearance: Takes up minimal floor space while delivering maximum hook height and horizontal reach.

  • Optimized Workstation Ergonomics: Designed for high-frequency, short-distance lifting, reducing worker fatigue and eliminating waiting time for large overhead travelling cranes.



STRUCTURAL DIAGRAM AND PARAMETER TABLE

Parameter Specification
Working Class A3, A4, A5
Capacity 0.25 t – 5 t (standard configurations: 0.5t, 1t, 2t, 3t, 5t)
Span / Radius 3 m – 10 m (radius from column center to hook center, customizable)
Lifting Height 3 m – 8 m (customizable based on building clearance)
Lifting Speed 4 – 10 m/min (single speed) 8 – 20 m/min (dual speed / VVVF optional)
Rotation Angle 180°, 270°, 360° (full electric rotation or manual rotation)
Rotation Speed Manual: push/pull operation Electric: 0.5 – 1.5 rpm (VVVF optional)
Control Method Pendant control (standard) / Remote radio control (optional)
ower Supply 380V / 50Hz / 3-phase
Temperature -10°C to +45°C (indoor general industrial environment)
Protection Grade Hoist motor: IP44 – IP54, Insulation class F Rotation motor (if electric): IP44 – IP54
Girder Type / Structure Column-mounted rotating arm – Single cantilever beam with slewing bearing or bushing type rotation
