LDP Type Electric Single Girder Overhead Crane
Authentication mark:
This crane is mainly used in precision manufacturing workshops, assembly lines, warehousing and logistics centers, machine shops, and light industrial facilities
Capacity:
1 t – 20 t
Lifting Height:
6 m – 18 m (customizable based on building clearance)
Span:
7.5 m – 22.5 m customizable
Voltage/Hertz:
3 Phase 380V 50hz
Working Class:
A3, A4, A5 (Light to medium duty)
Get A Free Quote
Introduction
Application Scenario
Advantages
Structural Diagram And Parameter Table
INTRODUCTION
What is this?

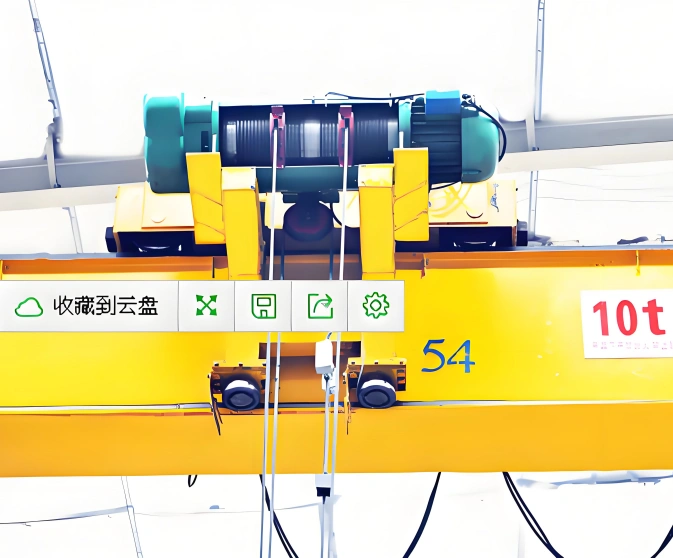

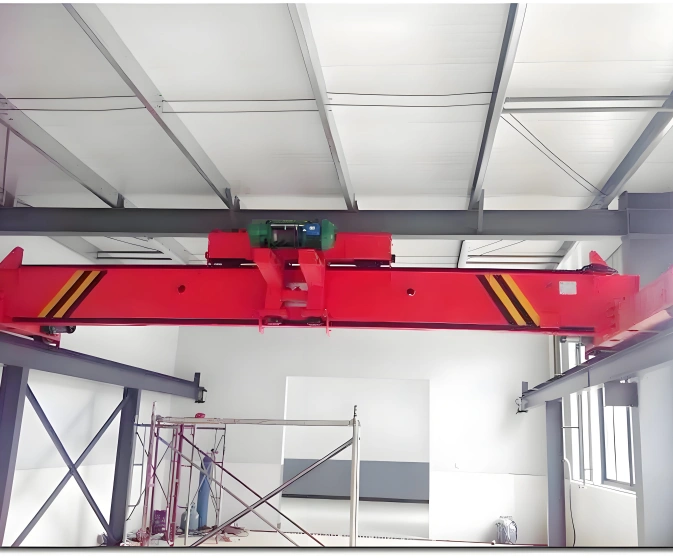

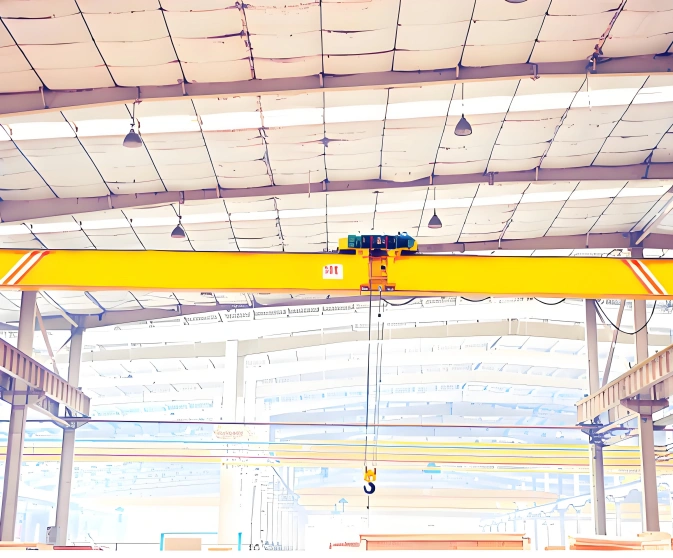

The LDP type electric single girder overhead crane is a high-performance lifting solution featuring a compact single main beam structure with an advanced electric wire rope hoist or CD/MD electric hoist. The hoist travels along the bottom flange of the box-section or I-beam girder, achieving smooth, precise lifting and handling of light to medium loads such as precision parts, machinery components, raw materials, finished goods, tools, and assembled products. Designed with low headroom requirements, smooth operation characteristics, and a durable structure, this crane is ideal for workshops where precision and reliability are essential. If you need a dependable, cost-effective overhead crane for daily lifting tasks under 20 tons with smooth operation and long service life, this product is designed for you.
Why choose an LDP single girder overhead crane over a standard LD single girder crane?
Compared to standard LD single girder cranes, the LDP solution offers four core advantages:
First, smoother operation – precision-engineered trolley with sealed bearings and low-resistance wheels provides smoother travel and more accurate load positioning.
Second, lower noise level – optimized gearbox design and rubber buffers reduce operational noise, creating a better working environment.
Third, higher duty rating – upgraded components allow continuous operation at A5 duty class, suitable for 8-12 hours of daily use.
Fourth, better structural rigidity – reinforced box-section girder reduces deflection by 15%-20% compared to I-beam designs, improving load stability.
Get smoother, quieter, and more reliable lifting with the upgraded LDP design.
What can we do for you?
We understand that every customer has different building structures, different capacity requirements, and different operational needs. Therefore, we offer flexible customization options: lifting capacity from 1 ton to 20 tons; span from 7.5 meters to 22.5 meters; hoist types of CD electric hoist (single speed) or MD electric hoist (dual speed); control options of pendant, remote radio, or cabin; VVVF speed control optional for ultra-smooth start/stop and precise positioning; end carriage configurations for different rail types. Whether your workshop is for precision machining, assembly, warehousing, or general manufacturing, we can match the most suitable configuration to maximize your operational efficiency.
Unsure? Don't know?
Not sure what capacity suits your daily workload? Don't know what span fits your workshop width? No problem. Just tell us: your building clearance height, your workshop span, and the maximum weight to be lifted. Our engineers will provide you with an accurate quote and CAD drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your workshop structure and handling needs, and we will calculate for you.
The LDP type electric single girder overhead crane is a high-performance lifting solution featuring a compact single main beam structure with an advanced electric wire rope hoist or CD/MD electric hoist. The hoist travels along the bottom flange of the box-section or I-beam girder, achieving smooth, precise lifting and handling of light to medium loads such as precision parts, machinery components, raw materials, finished goods, tools, and assembled products. Designed with low headroom requirements, smooth operation characteristics, and a durable structure, this crane is ideal for workshops where precision and reliability are essential. If you need a dependable, cost-effective overhead crane for daily lifting tasks under 20 tons with smooth operation and long service life, this product is designed for you.
Why choose an LDP single girder overhead crane over a standard LD single girder crane?
Compared to standard LD single girder cranes, the LDP solution offers four core advantages:
First, smoother operation – precision-engineered trolley with sealed bearings and low-resistance wheels provides smoother travel and more accurate load positioning.
Second, lower noise level – optimized gearbox design and rubber buffers reduce operational noise, creating a better working environment.
Third, higher duty rating – upgraded components allow continuous operation at A5 duty class, suitable for 8-12 hours of daily use.
Fourth, better structural rigidity – reinforced box-section girder reduces deflection by 15%-20% compared to I-beam designs, improving load stability.
Get smoother, quieter, and more reliable lifting with the upgraded LDP design.
What can we do for you?
We understand that every customer has different building structures, different capacity requirements, and different operational needs. Therefore, we offer flexible customization options: lifting capacity from 1 ton to 20 tons; span from 7.5 meters to 22.5 meters; hoist types of CD electric hoist (single speed) or MD electric hoist (dual speed); control options of pendant, remote radio, or cabin; VVVF speed control optional for ultra-smooth start/stop and precise positioning; end carriage configurations for different rail types. Whether your workshop is for precision machining, assembly, warehousing, or general manufacturing, we can match the most suitable configuration to maximize your operational efficiency.
Unsure? Don't know?
Not sure what capacity suits your daily workload? Don't know what span fits your workshop width? No problem. Just tell us: your building clearance height, your workshop span, and the maximum weight to be lifted. Our engineers will provide you with an accurate quote and CAD drawings within 24 hours. Click the button below or contact us via WhatsApp/email to get your customized solution.
💡 Tip: We offer free selection consulting. Even if you are unsure about specific parameters, feel free to describe your workshop structure and handling needs, and we will calculate for you.
APPLICATION SCENARIO

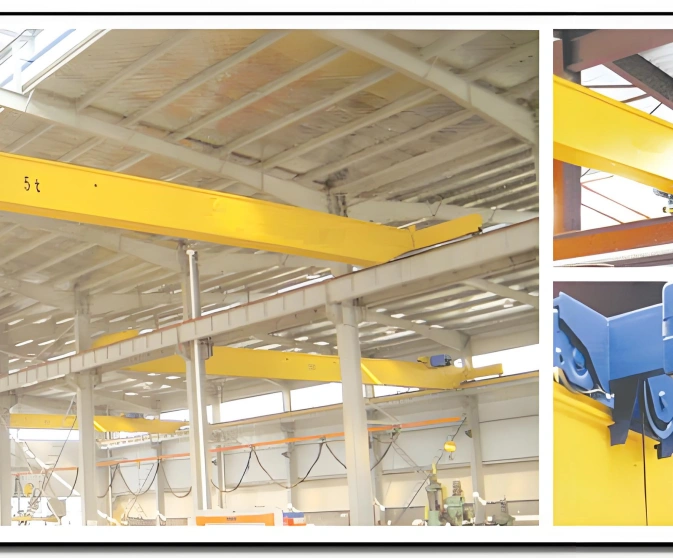

[1] Precision Manufacturing Workshops – Handling precision parts, machined components, dies, and finished products in aerospace, automotive, and medical device manufacturing where smooth operation prevents damage to delicate parts.
[2] Assembly Lines – Moving components, motors, pumps, subassemblies, and finished products along the production line. Low-noise operation improves working conditions on assembly lines.
[3] Warehousing and Logistics Centers – Loading/unloading goods from trucks, moving pallets and cartons to storage racks, and efficient order picking operations with precise positioning.
[4] Machine Shops – Lifting workpieces, engine blocks, gearboxes, castings, and machine parts between lathes, mills, grinders, and other precision equipment.
[5] Light Industrial Facilities – Handling raw materials, semi-finished products, tools, and assembled components in plastics, electronics, textiles, and general manufacturing.
[6] Maintenance Workshops – Servicing equipment parts, motors, pumps, gearboxes, and heavy tools in plant maintenance areas with reliable daily operation.
[2] Assembly Lines – Moving components, motors, pumps, subassemblies, and finished products along the production line. Low-noise operation improves working conditions on assembly lines.
[3] Warehousing and Logistics Centers – Loading/unloading goods from trucks, moving pallets and cartons to storage racks, and efficient order picking operations with precise positioning.
[4] Machine Shops – Lifting workpieces, engine blocks, gearboxes, castings, and machine parts between lathes, mills, grinders, and other precision equipment.
[5] Light Industrial Facilities – Handling raw materials, semi-finished products, tools, and assembled components in plastics, electronics, textiles, and general manufacturing.
[6] Maintenance Workshops – Servicing equipment parts, motors, pumps, gearboxes, and heavy tools in plant maintenance areas with reliable daily operation.
ADVANTAGES
[1] Smooth Operation – Precision trolley with sealed bearings and low-resistance wheels provides smooth travel and accurate positioning.
[2] Low Noise Design – Optimized gearboxes and rubber buffers reduce operational noise for a better working environment.
[3] Reinforced Box-section Girder – 15%-20% less deflection than I-beam designs, improving load stability and safety.
[4] Higher Duty Rating – Upgraded components allow A5 duty class for 8-12 hours of daily continuous operation.
[5] Cost-Effective – Single girder design reduces cost by 30%-40% compared to double girder cranes.
[6] Flexible Control Options – Available with pendant, remote radio, or cabin control, with VVVF speed control optional.
[2] Low Noise Design – Optimized gearboxes and rubber buffers reduce operational noise for a better working environment.
[3] Reinforced Box-section Girder – 15%-20% less deflection than I-beam designs, improving load stability and safety.
[4] Higher Duty Rating – Upgraded components allow A5 duty class for 8-12 hours of daily continuous operation.
[5] Cost-Effective – Single girder design reduces cost by 30%-40% compared to double girder cranes.
[6] Flexible Control Options – Available with pendant, remote radio, or cabin control, with VVVF speed control optional.
STRUCTURAL DIAGRAM AND PARAMETER TABLE
| Parameter | Specification |
|---|---|
| Working Class | A3, A4, A5 |
| Capacity | 1 t – 20 t |
| Span | 7.5 m – 22.5 m |
| Lifting Height | 6 m – 18 m |
| Lifting Speed | 4 – 12 m/min |
| Trolley Travelling Speed | 20 – 35 m/min |
| Crane Travelling Speed | 20 – 45 m/min |
| Control Method | Pendant control / Remote radio control / Cabin control |
| Power Supply | 380V / 50Hz / 3-phase |
| Temperature | -20°C to +50°C |
| Hoist Type | CD electric hoist (single speed) / MD electric hoist (dual speed) |
